model：hs-5
brand：jingxin
specifications ：set

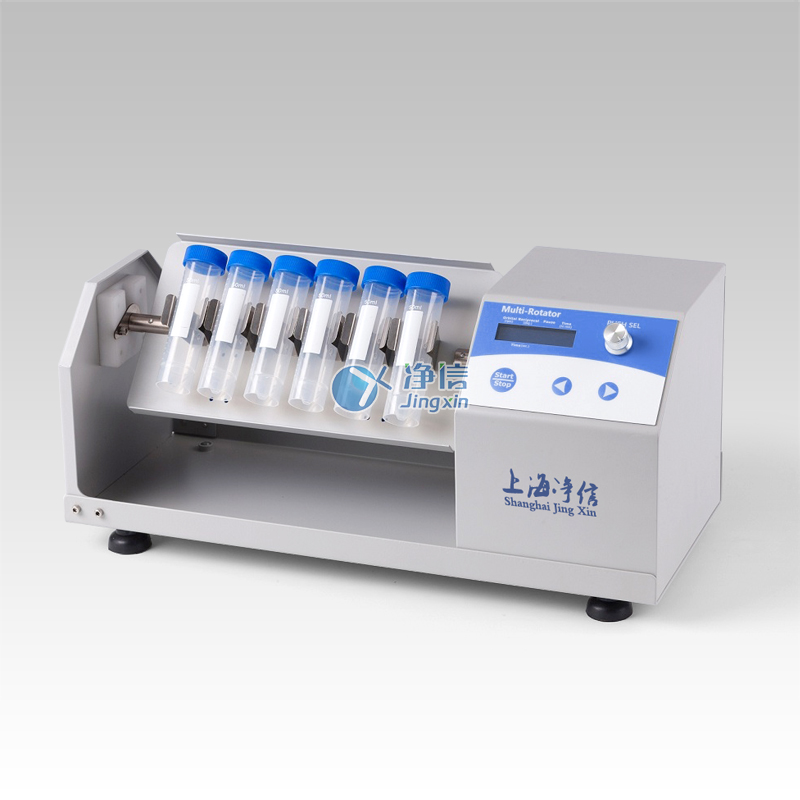

introduction：rotary mixer adopts dc motor and microcomputer control technology. the unique knob operation mode is simple and easy to use. it is suitable for the fields of biotechnology, microbiology and medical analysis.
product description:
rotary mixer adopts dc motor and microcomputer control technology. the unique knob operation mode is simple and easy to use. by changing different trays, it can mix various commonly used test tubes. it is suitable for the fields of biotechnology, microbiology and medical analysis.
1. product features:
1.1. the lcd displays the timing time and speed value in real time.
1.2. knob operation mode, simple and easy to use.
1. set the time arbitrarily within the range of 3.1min~99h59min, and the prompt sound will be emitted automatically after the operation is over.
1.4. a variety of trays are available for a wide range of uses.
1.5. dc motor drive, precise speed and maintenance-free.
1.6. multiple modes can be programmed to run in combination, three types of rotation, flip, and pause can be executed individually, and two or three combinations can be run in cycles.
2. normal working conditions
operating environment temperature: 4°c ~ 45°c
relative humidity: ≤90%
power supply: ac100~240v
product parameters:
the main parameters | parameters range |
rotating speed | 10~100rpm |
working time setting | 1min-99h59min |
rotation and flip countdown settings | 1-250s |
pause time setting | 1-5s |
maximum load | 6kg |
input power | 25w |
power supply | ac100~240v 50/60hz |
dimensions | 485x200x226mm |
weight | 5.90kg |
pallet model:
product | description | number |
prs-01 | 44 1.5ml or 2.0ml centrifuge tubes can be installed vertically on both sides |
|
prs-02 | double-sided can install 40 1.5ml or 2.0ml centrifuge tubes horizontally |
|
prs-03 | 32 5ml centrifuge tubes can be installed vertically on both sides |
|
prs-04 | 40 5ml centrifuge tubes can be installed horizontally on both sides |
|
prs-05 | two sides can be installed vertically with 12 10ml or 15ml centrifuge tubes |
|
prs-06 | 16 10ml or 15ml centrifuge tubes can be installed horizontally on both sides |
|
prs-07 | 12 50ml centrifuge tubes can be installed vertically on both sides |
|
prs-08 | 16 50ml centrifuge tubes can be installed horizontally on both sides |
|
