the role of jingxin grinding portable hair grinder in forensic mass spectrometry detection.
ministry of justice:
take sf/z jd0107022-2018 as example:
targets: δ9-tetrahydrocannabinol, cannabidiol, cannabidiol
internal standard: methoxyphenamine/or similar
operating procedures:
ministry of justice: liquid chromatography-tandem mass spectrometry detection methods for 16 tryptamine-type new psychoactive substances and their metabolites in hair sf/t 0065-2020
internal standard 1mg/ml psilocybin d4/psiloxin d10/or similar
target:
tryptamines:
5-methoxy-n,n-diisopropyltryptamine (5-me0-dipt)
5-methoxy-n-methyl-n-isopropyltryptamine (5-me0-mipt)
5-methoxy-n,n-diallyltryptamine (5-me0-dalt)
5-methoxy-n,n-dimethyltryptamine (5-me0-dmt)
5-hydroxy-n,n-diisopropyltryptamine (5-0h-dipt)
4-hydroxy-n,n-diisopropyltryptamine (4-0h-dipt)
n,n-dimethyltryptamine (dmt)
n,n-dipropyltryptamine (dpt)
5-methoxy-n-isopropyltryptamine (5-me0-nipt)
4-hydroxy-n-methyl-n-ethyltryptamine (4-0h-met)
psilocin）
psilocybin）
4-hydroxy-n-methyl-n-isopropyltryptamine (4-0h-mipt)
4-acetoxy-n,n-diisopropyltryptamine (4-acetoxy-dipt)
5-methoxy-2-methyltryptamine (5-me0-amt)
n-isopropyltryptamine (nipt)
in the specification sf/z jd0107022-2018, it is recommended to adopt the method of first grinding and then weighing for sampling, while in sf/t 0065-2020, the method of accurate weighing and then grinding is adopted. which is more applicable?
2 options are available!

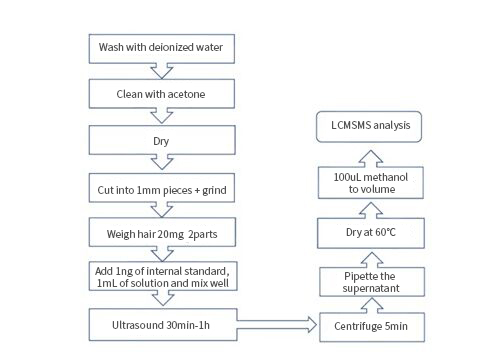

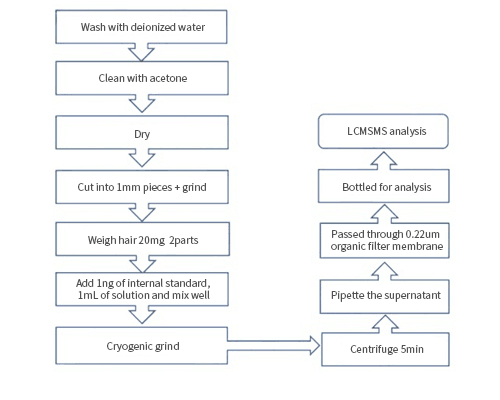

1. in the specification, the hair is washed, dried, cut into pieces, and weighed after grinding.
advantages: 1mm hair section is prone to static electricity. after cutting it, it will make the hair stick to the inner wall of the test tube and it is not easy to transfer and weigh. therefore, it is relatively easy to use dry freeze grinding before weighing.
disadvantages: after dry freeze grinding, the debris that is easily mixed into the grinding balls causes inaccurate weights, and the concentration of the test results is low. in order to avoid this phenomenon, it is necessary to use metal grinding balls, but the cost is more expensive and one-time use will increase the cost.

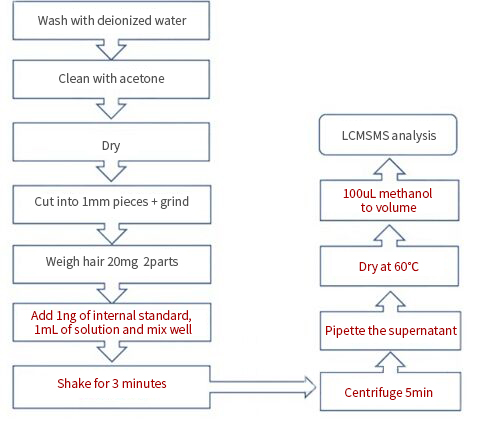

2. in the standard, the hair is washed, dried, cut into pieces, weighed, and ground after adding the internal standard solution.
advantages: the precise weight of the hair after grinding does not change, and the data conclusions are more accurate.
disadvantages: hair is prone to static electricity. after being cut and weighed, the hair will stick to the inner wall of the test tube and it is not easy to transfer and weigh. to solve this problem, it is necessary to accurately record the quality information of the 1mm hair section for calculation, and use the precision better balance weighing.

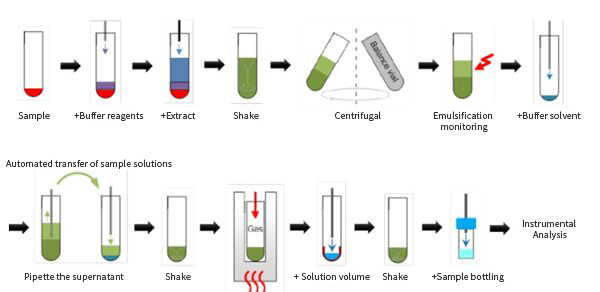

in addition, for sample pretreatment, except for hair washing and grinding, which requires manual operations, atlas-lext series products can be used to automate sample pretreatment in the whole process: compared with manual sample analysis, the automated solution is simpler and faster.
the hair grinder used in the grinding process of the product is exactly the portable hair grinder produced by jingxin. the product jxmf-06 portable hair grinder drives them to strike the inner surface of the arc with high energy by the inertia of the grinding balls/beads. the sample material, so as to achieve the effect of crushing and grinding. the movement of the adapter can be superimposed with the movement of the inner ball to thoroughly mix the sample.
main feature：
1. portable design, small size and light weight, easy to carry.
2. high throughput, good effect, fast and accurate.
3. powerful stirring for cracking, grinding or homogenization.
4. simple operation and safe design to ensure safe operation.
5. portable mobile power adapter, can be used anytime, anywhere.
advantages：
easy to operate: easy-to-operate fixture design, just twist it lightly
strong applicability: can be equipped with a power bank, available anytime, anywhere
small size: only 210*140*150 mm, slightly larger than the handheld centrifuge
high cost performance: the price is only a few thousand yuan
high efficiency: 1-6 samples, only 1 minute for dry grinding and 3 minutes for wet grinding
no contamination: each sample is processed in a separate grinding tube to avoid cross-contamination
